General Information

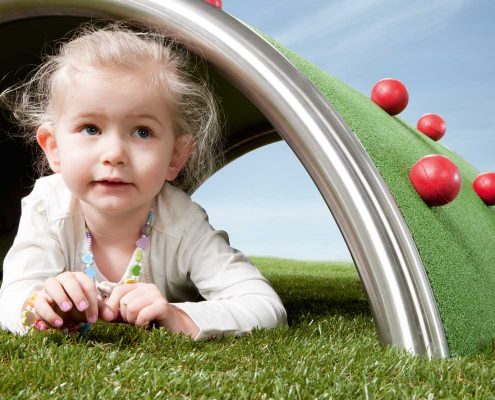

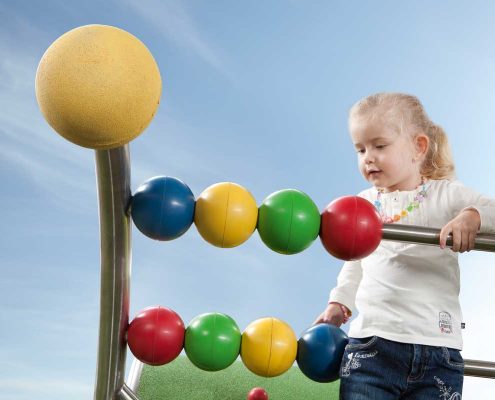

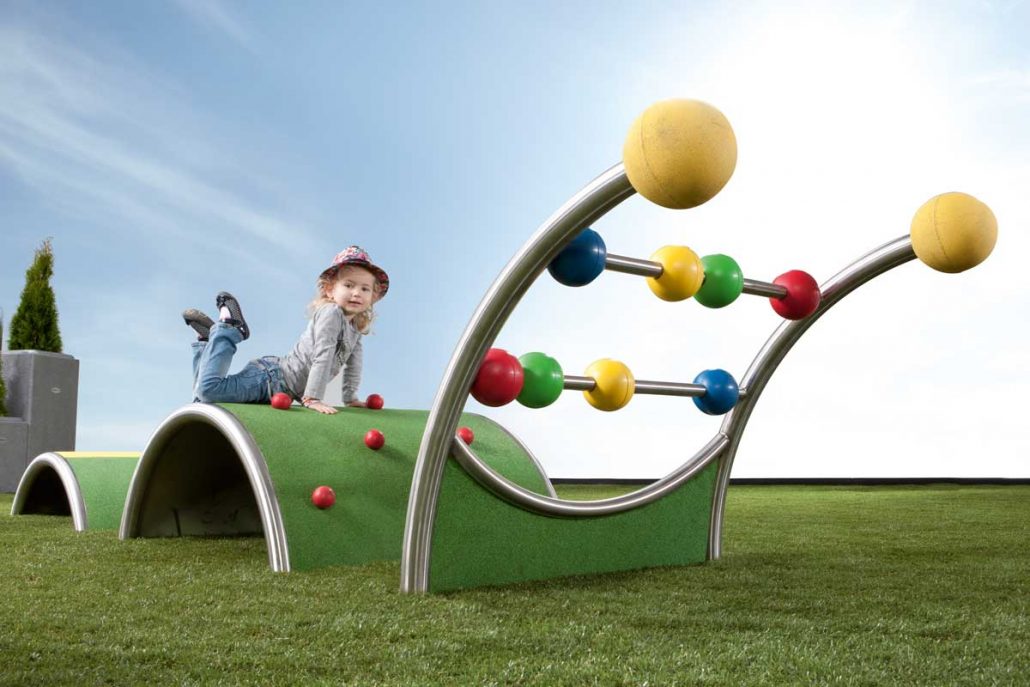

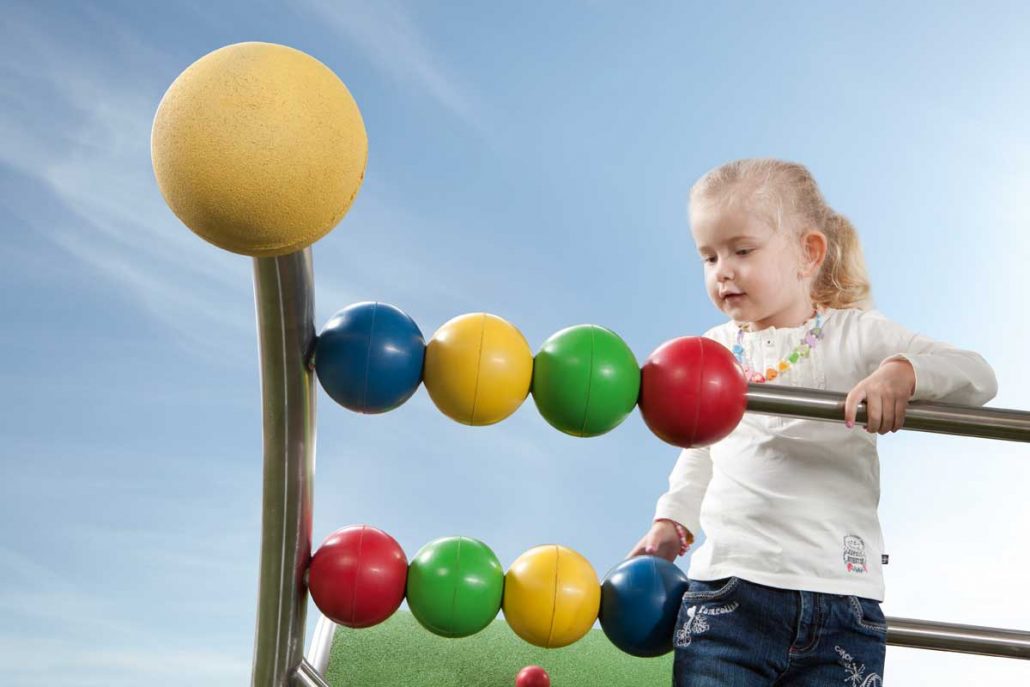

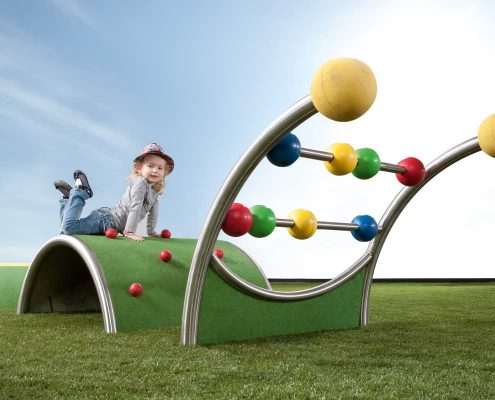

The three-piece toddler element invites children to climb, slide, hide and explore. Moveable balls in the front area show the primary colours red, green, blue and yellow. Different materials, such as the slip-resistant, soft back of the caterpillar, cool stainless steel surfaces or smooth balls help children train their tactile senses while grasping and experiencing. The climbing element by stilum is available with installation depths of 150 (ID150) and 450mm (ID450).
Product Data
Material: | Stainless steel |
ID150 Item No.: | 51 5552 401 |
ID450 Item No.: | 51 5552 402 |
Equipment dimensions: | 4410 x 1120 x 845 mm |
Maximum height of fall: | 900 mm |
Minimum space: | 7450 x 4000 mm |
Safety surfacing area: | 29,60 m² |
Required safety slabs: | 30,00 m² |
Recommended surface material: (ID 150) | synth. fall protection (e.g. EPDM Impact Protection), grass |
Recommended surface material: (ID 450) | synth. fall protection (e.g. EPDM Impact Protection), grass, sand, wood chip, gravel |
Safety: | DIN EN 1176 |
Coating: | Coloured granulate rubber coating |
Age rating: | from 1 year |
All rights and product modifications reserved.
Downloads
Climbing element Erika with 150mm installation depth
- Mounting Instruction | PDF
- Maintenance Instruction | PDF
- Data sheet | PDF
- Foundation plan | DWG
- Safety area | DWG
- Certificate | PDF
- Scope of delivery | PDF
Climbing element Erika with 450mm installation depth
